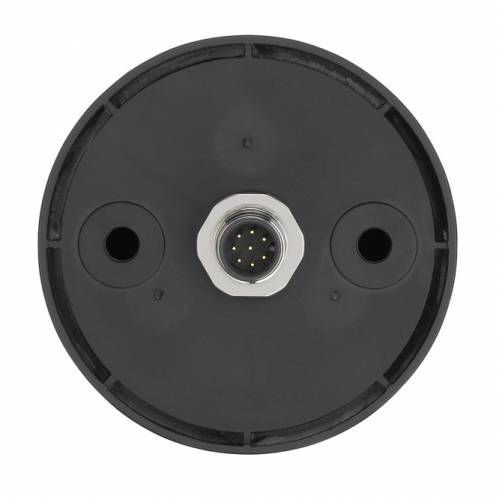

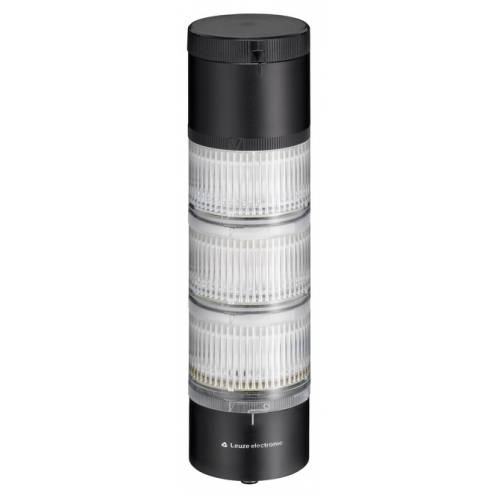

A7-MH1-M12 - Signaling column element
A7-MH1-M12 - Signaling column element
Артикул: 50142456
В наличии
0 ₽
Характеристики
| Basic data | ||
| Series | A7 | |
| Type | Male | |
| Certifications | ||
| Certifications | CSA | |
| Degree of protection | IP 66, Only when mounted on a housing with the same degree of protection | |
| Classification | ||
| Customs tariff number | 85318070 | |
| eCl@ss 10.0 | 27371235 | |
| eCl@ss 11.0 | 27371235 | |
| eCl@ss 5.1.4 | 27371235 | |
| eCl@ss 8.0 | 27371235 | |
| eCl@ss 9.0 | 27371234 | |
| ETIM 5.0 | EC001154 | |
| ETIM 6.0 | EC001154 | |
| ETIM 7.0 | EC001154 | |
| Connection | ||
| Encoding | A-coded | |
| Material | Metal | |
| No. of pins | 8 -pin | |
| Number of connections | 1 Piece(s) | |
| Thread size | M12 | |
| Type of connection | Connector | |
| Environmental data | ||
| Ambient temperature, operation | -10 ... 60 °C | |
| Mechanical data | ||
| Design | Cylindrical | |
| Design of mounting device | Horizontal mounting | |
| Dimension (Ø x L) | 70 mm x 61 mm | |
| Housing color | Black | |
| Housing material | Plastic, Plastic | |
| Module holder | One side | |
| Net weight | 98 g | |
| Type of fastening, at system | Screw type / horizontal | |
